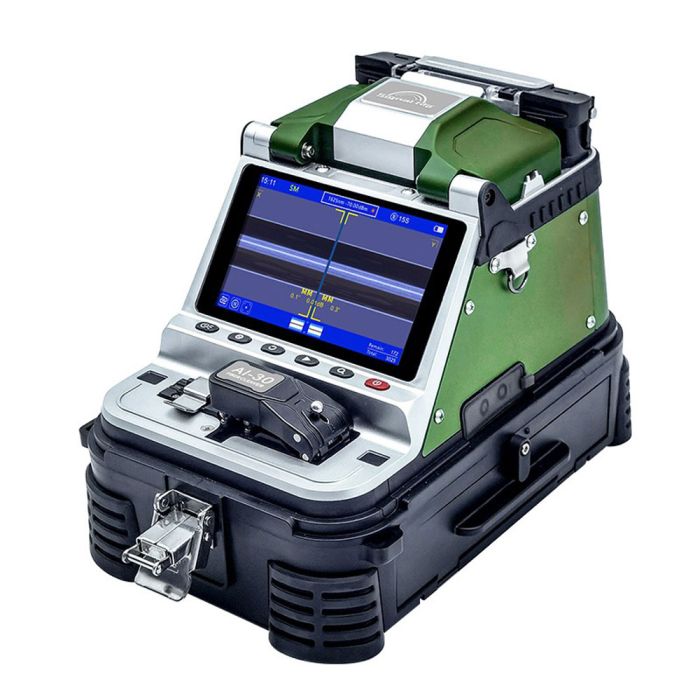

Fusion Splicer AI-30, Signal Fire

Technical parameters

• Fiber alignment: Core/cladding
• Motor number: 6 motors (0.05μm fiber alignment accuracy)
• Splicing time: 6s
• Heating mode: 15s (can be customized according to the external environment)
• Fiber type: Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion
• The cladding diameter: 80-150μm
• Splicing loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
• Splicing mode: Automatic focusing core alignment, conventional/high precision welding
• Splicing mode: Automatic or semi-automatic
• Fiber holder: Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable, bare fiber, tail fiber, jumper fiber, drop cable
• Fiber cleaver: High precision delay return electric one-step fiber cleaver
• VFL: The machine comes with: 15mW 2Hz flashing and steady on mode
• Battery capacity: 7800mAh large capacity lithium battery, charging time ≤3.5 (can continuously weld and heat about 240 cores)
• Magnification: 320x (X or Y axis single display), 200x (X and Y axis dual display)
• Heat shrink tube: 60mm, 50mm, 40mm, 25mm
• Tensile testing: 2N (standard)
• Display: 5 inch TFT color display screen
• External lighting: USB port can be connected with EXTERNAL LED light, convenient for night construction
• Additional functions: The USB port can charge mobile devices such as mobile phones
• Boot time: 1s
• Data storage: Unlimited (machine stores 1000 groups and the excess can be stored on a server)
• Wireless communication: Bluetooth 4.2 (working band is 2.4GHz with maximum transmission range 60m)
• Software upgrade: Via mobile phone APP update and Bluetooth enabled synchronization
• Management function: The user can remotely view all the records (number of welds, welding time, loss, etc.) through the mobile phone APP
• The user can effectively manage a single or multiple devices
• Return loss: Better than 60db
• Product protection: Water, dust and fall proof
• Power supply: Input AC 100-240V 50/60Hz, output DC 13.5V 4.8A (the current battery level can be monitored real-time)

OPM

• Wavelengths: 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, 1650nm
• Measurement range: -50dbm - +30dbm
• Absolute error: <0.3dB (-50dbm ~ +3dBm range)

Fiber diameter

• Coating diameter: 80-150μm
• Coating diameter: 100-1000μm

Cutting length

• Coating layer 250μm and below: 8-16mm
• Coating layer 250-1000μm: 16mm

Work environment

• Temperature -15 ~ +50°C
• Humidity: < 95% RH (no condensation)
• Altitude: 0 ~ 5000m
• Maximum wind speed: ≤15m/s
