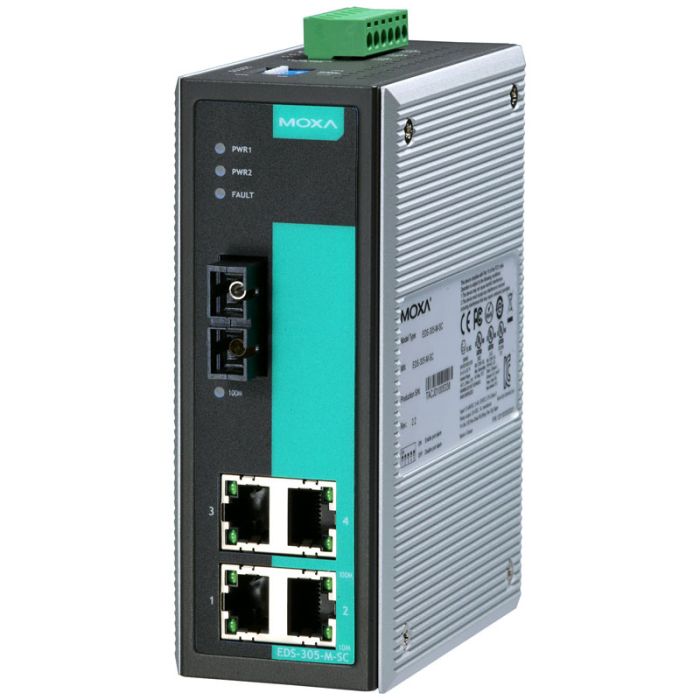

4x10/100BaseT(X) + 1x100BaseFX Unmanaged Switch with multi-mode SC connector

Rating:
SKU
EDS-305-M-SC
  • Auto negotiation speed
  • Full/Half-duplex mode
  • Auto MDI/MDI-X connection
  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • Operating Temperature (Standard Models): -10 to +60°C (14 to 140°F)
  • Wide Temp. Models (T models): -40 to +75°C (-40 to +167°F)
  • Storage Temperature (package included): -40 to +85°C (-40 to +185°F)
  • Ambient Relative Humidity: 5% to 95% (non-condensing)
  • Dimensions: 53 x 135 x 105 mm (2.09 x 5.32 x 4.13 in)
  • Weight: 790 g (1.75 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)
Attached files
BGN 885.48 BGN 737.90
BGN 885.48 BGN 737.90
Out of stock

The EDS-305 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 5-port switches come with a builtin relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class I Div. 2, ATEX Zone 2, and IECEx standards.

The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of 0 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-305 switches can be installed easily on a DIN rail or in a distribution box.

More Information
Weight (kg)0.000000
BrandMoxa
ColorBlack
Country of ManufactureTaiwan
Lan Ports Number4
Network connectorSC, RJ45
Number of Fiber Optical Ports1
Max Data Rate100M
Optical ports speed100 Mb/s
Lan Ports TypeRJ45 (10/100 Mb/s)
Form FactorDin Rail
PoE StandardNone
Used forIndustrial
Switch ManagementUnmanaged
ProtectionIP 30
  • Datasheet-moxa-eds-305-series-datasheet-v1.2
