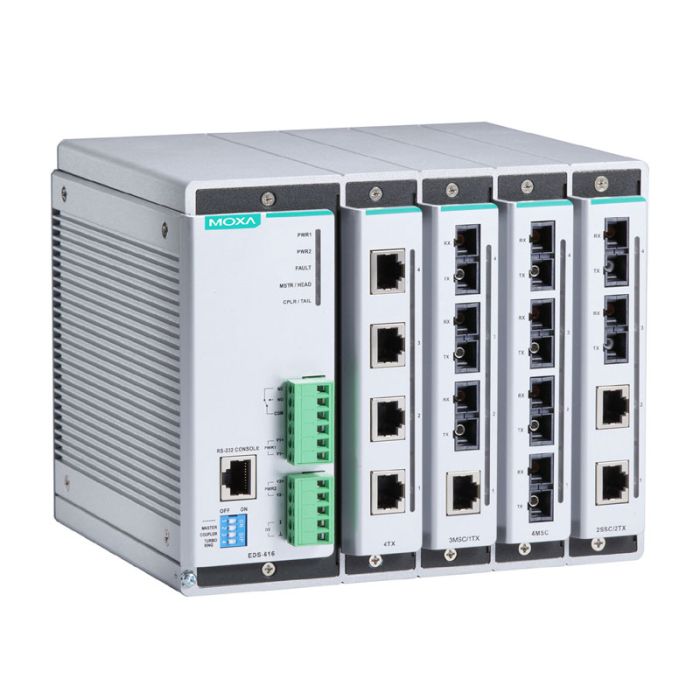

Modular Managed System with 4 interface modules 4x10/100BTX or 4x100BaseFX each

Rating:
SKU
EDS-616-T

Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to 16 ports.

  • Modular design with 4-port copper/fiber combinations
  • Hot-swappable media modules for continuous operation
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management
  • IP Rating: IP30
  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included) : -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Dimensions: 185 x 151 x 157.4 mm (7.28 x 5.95 x 6.20 in)
  • Weight: 2,448 g (5.40 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)
Attached files
BGN 6,287.64 BGN 5,239.70
BGN 6,287.64 BGN 5,239.70
Out of stock

Information about the series:

The versatile modular design of the compact EDS-616 Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-616’s modular design lets you install up to 16 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-616 Series supports several reliable and intelligent functions, including EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.

More Information
Weight (kg)0.000000
BrandMoxa
ColorGray
Country of ManufactureTaiwan
Lan Ports Number7
Network connectorRJ45, SC
Number of Fiber Optical Ports9
Max Data Rate100M
Optical ports speed100 Mb/s
Lan Ports TypeRJ45 (10/100 Mb/s)
Form FactorDin Rail
PoE StandardNone
Used forIndustrial
Switch ManagementLayer 2
ProtectionIP 30
  • Datasheet-moxa-eds-616-series-datasheet-v1.6
