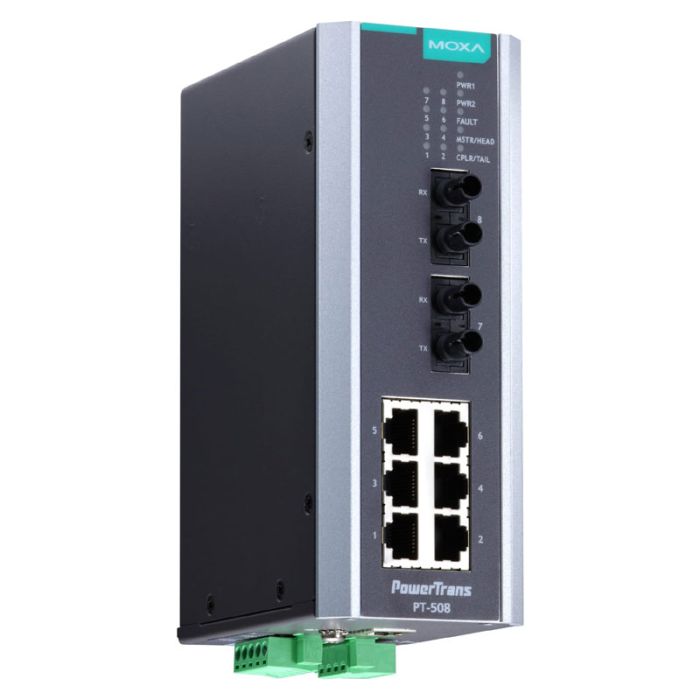

6x100BaseTx + 2x100Base FX ST Managed Industrial Switch

Rating:
SKU
PT-508-MM-ST-HV
  • Housing: Aluminum
  • IP Rating: IP40
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Isolated universal 24 VDC or 48 VDC redundant power inputs
  • Operating Temperature: -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Dimensions (without ears): 60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in)
  • Weight: 995 g (2.21 lb)

Installation:

  • DIN-rail mounting
  • DIN-rail mounting (with optional kit)
Attached files
BGN 3,634.80 BGN 3,029.00
BGN 3,634.80 BGN 3,029.00
Out of stock
  • Command line interface (CLI) for quickly configuring major managed functions
  • VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
  • EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
  • Configurable by web browser, Telnet/Serial console, CLI, Windows utility, and ABC-01 automatic backup configurator
  • DHCP Option 82 for IP address assignment with different policies
  • IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
  • IEEE 802.3ad, LACP for optimum bandwidth utilization
  • Bandwidth management to prevent unpredictable network status
  • Multi-port mirroring for online debugging
  • Automatic warning by exception through email and relay output
  • RMON for proactive and efficient network monitoring
  • Automatic recovery of connected device’s IP addresses
  • Line-swap fast recovery
More Information
Weight (kg)0.000000
BrandMoxa
ColorGray
Country of ManufactureTaiwan
Lan Ports Number6
Network connectorST, RJ45
Number of Fiber Optical Ports2
Max Data Rate100M
Optical ports speed100 Mb/s
Lan Ports TypeRJ45 (10/100 Mb/s)
Form FactorDin Rail
PoE StandardNone
Used forIndustrial
Switch ManagementLayer 2
ProtectionIP 40
  • Datasheet-moxa-pt-508-series-datasheet-v1.2

    Download
