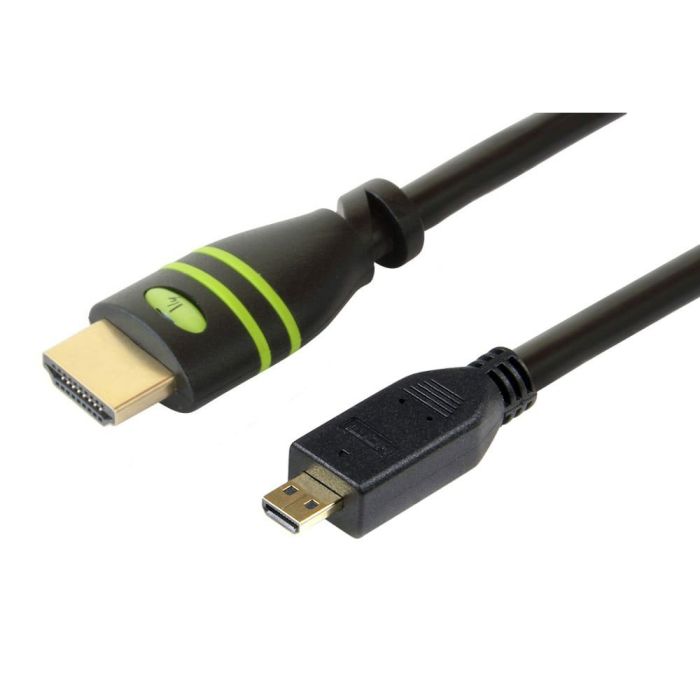

HDMI Cable with Ethernet Channel 1.4 A/M - Micro-D/M, Black

Rating:
SKU
ICOC-HDMI-4-ADx
  • HDMI High Speed with Ethernet
  • Connector A Type: HDMI 19-pin male A
  • Connector B Type: Micro HDMI 19-pin male D
  • Shielding type:    Braid and aluminum foil
  • Cable rate: 340 MHz
  • Maximum resolution: 4K (2160p)
  • Maximum bandwidth per channel: 10 Gbit/s
  • Supported Audio Standard: Audio-Return Channel (ARC)
  • Other Supported Standards: HEC (HDMI Ethernet Channel)
  • Gold-plated Contacts
  • Molded PVC
  • Current rating: 0.5A DC
  • Withstanding voltage: 300V DC
  • Insulation resistance: 50 MOhms
  • Conductive resistance: 2 Ohms
  • Color: Black
Attached files
Price from
BGN 13.68 BGN 11.40
Out of stock
BGN 13.68 BGN 11.40
  • Cable based on a new technology that provides the best transmission of data between the HDMI source and HDMI display. The five twisted pairs offer better transmission of data between devices
  • Triple shielded with resistant connectors for better performance that can optimize the signal with data integrity, even in installation environments subjected to the worst interference EMS
  • Certificate ATC - this cable is fully meeting the requirements of world standard HDMI All cable materials are 100% RoHS compliant and lead free
  • Connections to HDMI 19-pin male to Micro HDMI 19-pin male D
  • High-speed, two-way communication up to 100 Mbps
  • Supports HD resolutions beyond 1080p and Deep Color
  • Compliant with HDMI High Speed
  • Molded PVC
  • HDMI Ethernet Channel - Adds high-speed networking to an HDMI connection
  • Audio Return Channel - Allows an HDMI connected TV with a built-in tuner to send audio data "upstream" to a surround audio system, eliminating the need for a separate audio cable
  • Supports 3D - Defines input / output protocols for major 3D video formats, paving the way for the experience of 3D gaming and 3D home theater applications
  • Supports 4000X2000 Resolution - Enables video resolutions far beyond 1080p, supporting next-generation displays
More Information
BrandTechly
ColorBlack
Country of ManufactureChina
TV/audio/komput. connectorHDMI Standard, HDMI Micro
StandardHDMI 1.4
Max Data Rate10G
Gold-platedYES
ShieldedДА
Signal transferringАудио сигнал, Видео сигнал
