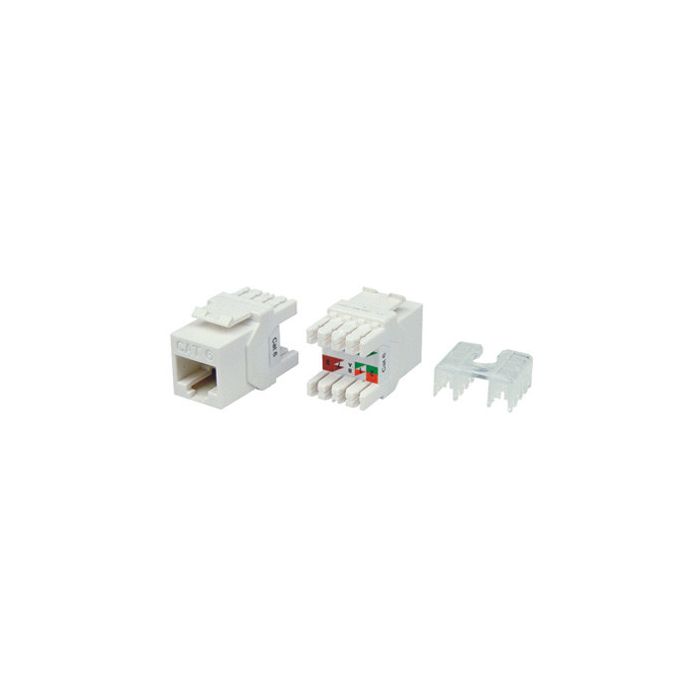

Keystone Jack Cat. 6, UTP, 180 degree, Conneu

Features

• Available in Cat6, T568A/B wiring, meet or exceed TIA/EIA Cat6 requirements
• Housing: high temperature thermoplastic
• Compact jack design, 8 positions and 8 conductors
• Contact: phosphor bronze, phosphor bronze with 6 to 50μ" gold plate
• Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
• Easy to be terminated, low attenuation loss and high return loss
• High reliability and superior performance

Construction

• Contact resistance (max): 100mΩ
• Insulation resistance (min): 500MΩ
• Return loss (dB): 5.2dB
