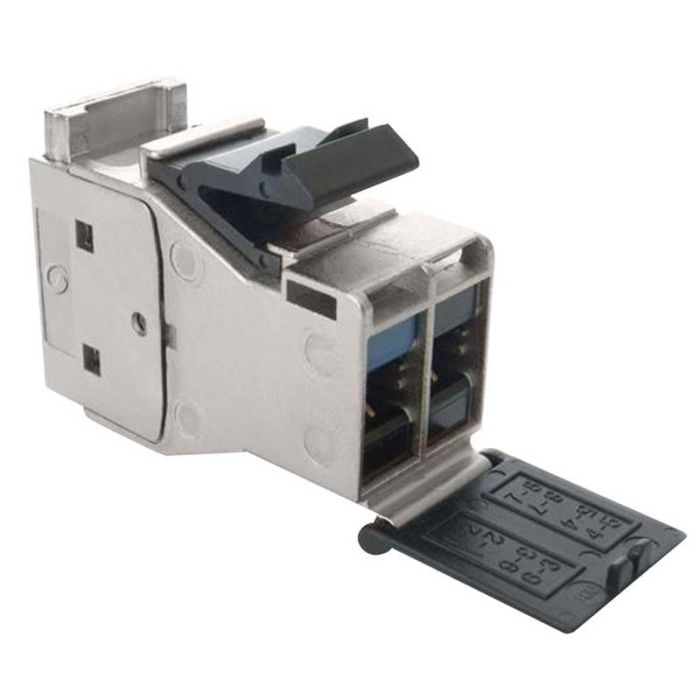

AMP-TWIST-7AS SL JACK, with DUST COVER

Product Type Features

• Product Type = Connector - Modular
• Jack Type = 4 Chamber
• Performance Category = Cat 7A
• Termination Style = SL Termination Tool
• Series = AMP-TWIST
• Keyed = No
• Cover Material = ABS

Electrical Characteristics

• Shielded = Yes

Dimensions

• Conductor Outer Diameter (mm [in]) = 1.60 [0.0629]
• Cable Diameter (Max.) (mm [in]) = 9.00 [0.354]

Body Features

• NETCONNECT Select System = Yes
• Cover Color = Black
• Mount Type = Panel Mount
• Wire Range (Solid) (mm [AWG]) = 22-24
• 110 Block Material = Polycarbonate

Contact Features

• Contact Base Material = Beryllium Copper
• Contact Plating, Mating Area, Material = Gold
• Contact Plating, Mating Area, Thickness (µm [μin]) = 1.27 [50]

Housing Features
