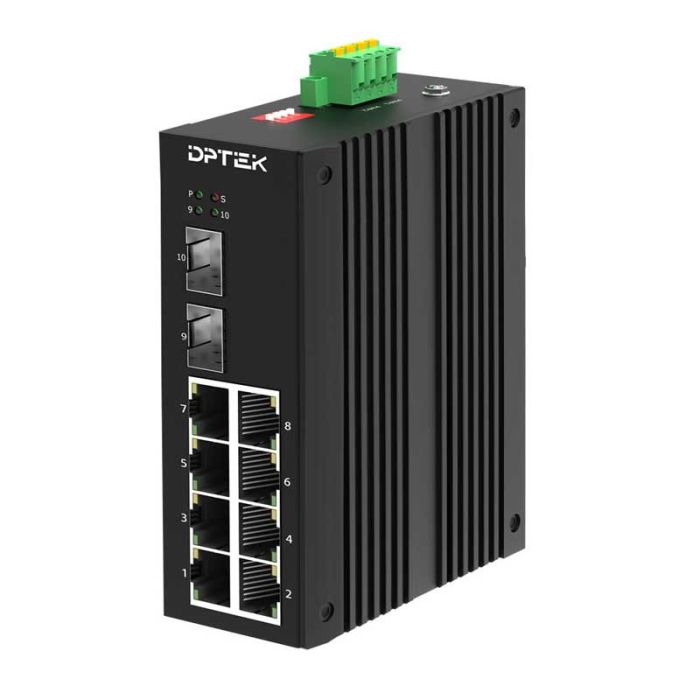

Features:
8x10/100/1000Base-T RJ45 PoE ports, 2x1000Base-X SFP (SC/ST/FC optional) ports
DC 44~ 57 V input, redundant power supply with polarity reverse/over-voltage protection
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Dip switch function: 1.Port isolation; 2. 250m long distance; 3. QoS; 4.PoE watchdog
Support 10 K Bytes Jumbo frame
Support 4 kV surge protection and ESD: Air - 15 kV, Contact - 8 kV Protection
IP40 fan-less and Din-rail hardware design
Operation temperature: -40 °C ~ +75 °C
Specifications:
Interface
Fiber ports: 2
Copper RJ45 ports: 4
Ethernet
8x10/100/1000Base-T PoE
2x1000Base-X SFP(SC/ST/FC optional)
Standard
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3af Power-over-Ethernet
IEEE 802.3at Power-Over-Ethernet Plus PSE
Dip Switch
1. Port Isolation
2. 250 m long distance mode (1-4 ports)
3. QoS (1-2 ports）
4. PoE watchdog
Power parameters
Input voltage: 44 - 57 V DC, redundant power input
Input current: 5.6A Max
Total consumption: Full loading without PoE ≤ 7.5 W; PoE power budget ≤240 W
Connector: Removable 4-pin terminal block
Reverse polarity protection: Support
Over-voltage protection: Support
Switching features
Switching capacity: 20G
Packet forwarding rate: 29.7 Mpps
MAC address table: 16K
VLAN: 4K
Buffer: 2M
Forwarding delay: <5us
Jumbo Frame: Support 10Kbytes
MDX/MIDX: Support
Watchdog: Support
Network Topology
Star topology: Support
Bus topology: Support
Tree Topology: Support
Mechanical structure
Case protection: IP40
Installation method: Din-rail
Dimension(W*D*H)mm: 48x98x130 mm
Weight: 0.72 kg
Operating environment
Operating temperature: -40 ℃ ~ +75 ℃
Storage/transportation temperature: -40 ℃ ~ +85 ℃
Relative humidity: 5 %~95 % （non-condensing）
Industry standard:
Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)）
DIP: IEC 61000-4-11 Level 3（10V）
ESD: IEC 61000-4-2 Level 4（8K/15K）
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification: CE/FCC/RoHS
| Тегло (кг) | 0.830000 |
|---|---|
| Марка | DPTEK |
| Country of Manufacture | Китай |
| Брой медни портове | 8 |
| Mрежови конектор | RJ45, SFP |
| Максимално разстояние | 250 м |
| Брой оптични портове | 2 |
| Макс. скорост на предаване | 1G |
| Оптични портове | SFP |
| Скорост оптични портове | 1 Gb/s |
| Тип на медния порт | RJ45 (10/100/1000 Mb/s) |
| Форм фактор | За монтаж на DIN шина |
| PoE стандарт | IEEE 802.3af 15.4W PoE, IEEE 802.3at 30W PoE+ |
| Приложение | Индустриално |
| Управление на суичовете | Неуправляем |
| Клас на защита | IP 40 |
| EAN | 6977182780348 |
