Индустриален суич 8x10/100/1000Base-T RJ45 + 1x1000Base-X SFP, Din-rail

Продуктов код
DK3110I-8T1S

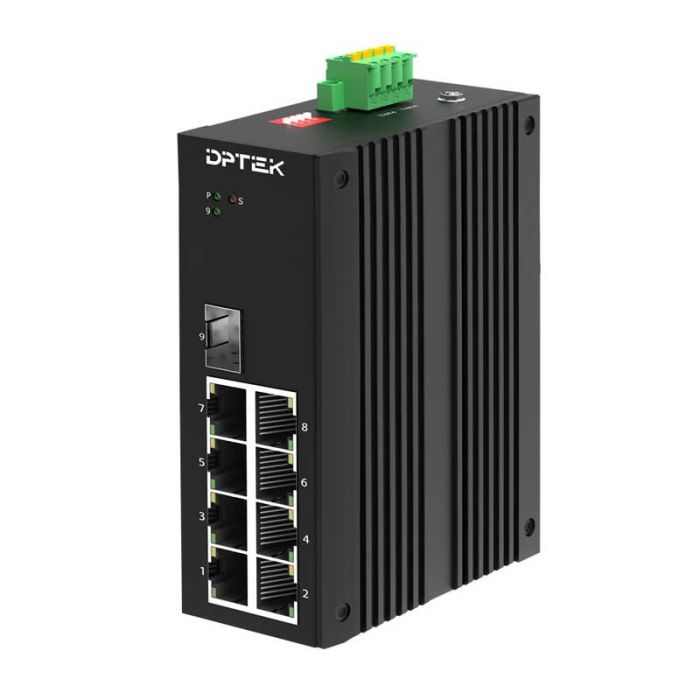

The DPTEK DK3110I-8T1S series are unmanaged industrial grade Ethernet switch with 8-port 10/100/1000-T RJ45 and 1-port 1000Base-X fiber optical interface. They are featuring with port isolation, flow control, QoS(1-2 ports) and broadcast storm restrain function, which all can be configured by the Dip switch on the top panel.

DK3110I-8T1S series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, such as wide range power input 12 - 58 V DC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40 °C ~ +75 °C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.

Прикачени файлове
213,48 лв. 177,90 лв.
213,48 лв. 177,90 лв.
В наличност

Features

  • 8x10/100/1000Base-T RJ45 ports, 1x1000Base-X SFP (SC/ST/FC optional) fiber port
  • DC 12 ~ 58 V input, redundant power supply with polarity reverse/over-voltage protection
  • Support 10 K Bytes Jumbo frame
  • IP40 fan-less and Din-rail hardware design
  • Operation temperature: -40 °C ~ +75 °C

Dip switch function

  • Port isolation
  • Flow control
  • QoS
  • Broadcast storm restrain
Допълнителна информация
Тегло (кг)0.820000
МаркаDPTEK
Country of ManufactureКитай
Брой медни портове8
Mрежови конекторRJ45, SFP
Брой оптични портове1
Макс. скорост на предаване1G
Оптични портовеSFP
Скорост оптични портове1 Gb/s
Тип на медния портRJ45 (10/100/1000 Mb/s)
Форм факторЗа монтаж на DIN шина
PoE стандартНяма
ПриложениеИндустриално
Управление на суичоветеНеуправляем
Клас на защитаIP 40
EAN6977182780355
  • DPTEK unmanaged Industrial Switches Quick Installation Guide

    Изтегляне
  • Datasheet-Индустриален суич 8x10-100-1000Base-T RJ45 plus 1x1000Base-X SFP Din-rail

    Изтегляне
