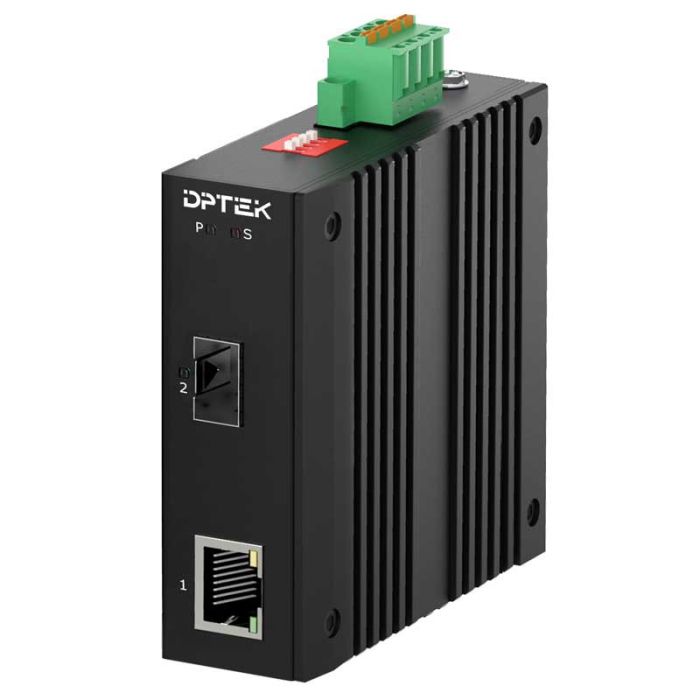

Индустриален медиа конвертор 1*10/100/1000Base-T RJ45 + 1*100/1000Base-X SFP, Din-rail

Продуктов код
DK-MC10G-E

The DPTEK DK-MC10G-E series are unmanaged industrial grade media converter with 1-port 10/100/1000-T RJ45 and 1-port 100/1000Base-X fiber optical interfaces. They are featuring with LFP, flow control, broadcast storm restrain and fiber port 100/1000M selection function, which all can be configured by the Dip switch on the top panel.

DK-MC10G-E series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, such as wide range power input 12 - 58 VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less compact size housing with Din-rail installation, wide operation temperature from -40 ℃ to 75 ℃ as well as high-level EMI/EMC capability and so on. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications

Прикачени файлове
117,48 лв. 97,90 лв.
117,48 лв. 97,90 лв.
В наличност

Features

  • 1x10/100/1000Base-T RJ45 port, 1x100/1000Base-X SFP(SC/ST/FC optional) fiber port
  • DC 12~58 V input, redundant power supply with polarity reverse/over-voltage protection
  • Support 10 K Bytes Jumbo frame and 1M large buffer
  • Support 4 KV surge protection and ESD: Air - 15 kV, Contact-8kV Protection
  • IP40 fan-less and Din-rail hardware design with compact size (30x85x85 mm)
  • Operation temperature: -40℃ ~ +75 ℃

Powerful Dip switch function

  • LFP
  • Flow control
  • Broadcast storm restrain
  • Fiber port 100/1000M selection
Допълнителна информация
Тегло (кг)0.400000
МаркаDPTEK
Country of ManufactureКитай
Брой медни портове1
Брой оптични портове1
Скорост оптични портове1 Gb/s
Макс. скорост на предаване100/1000M
Тип на медния портRJ45 (10/100/1000 Mb/s)
Mрежови конекторRJ45, SFP
Форм факторЗа монтаж на DIN шина
PoE стандартНяма
Управление на суичоветеНеуправляем
Клас на защитаIP 40
EAN6977182780287
