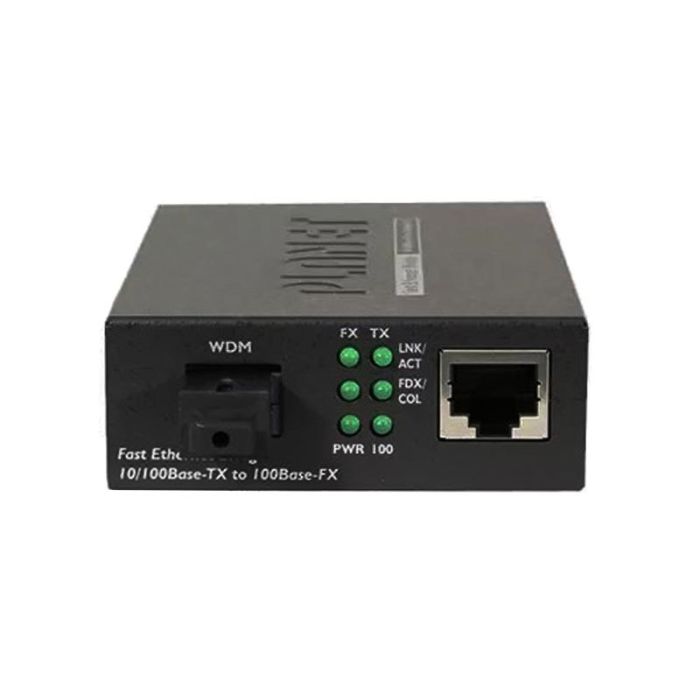

Медиа конвертор, 100M, 1550-1310 nm, сингъл мод, 20 км

General

• Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
• IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets
• Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
• One fiber-optic, Tx-1550 nm, Rx-1310 nm wavelength

Data Transfer Rate

• TP: 10/100Mbps
• FX: 100Mbps

Duplex mode support

• Full or half-duplex mode by auto-negotiation (TP)
• Full or half-duplex mode by DIP switch (FX)

LED indicators

• PWR,
• FX LNK/ACT
• FX FDX/COL
• TP 100
• TP LNK/ACT
• TP FDX/COL

DIP switch

• 2 DIP switches
• Rear DIP switch: FX duplex mode selection
• Side DIP switch: LFP (Link Fault Pass-through) mode selection

Environment & Emissions

• Operating Environment Temperature: 0~50 degrees C
• Humidity: 5~90% non-condensing
• Storage Environment Temperature: -40~70 degrees C
• Humidity: 5~90% non-condensing
• Emissions: FCC Class A, CE Class A
