Индустриален суич с 8 порта 10/100TX

Industrial Area Switch for Data Collection and Forwarding

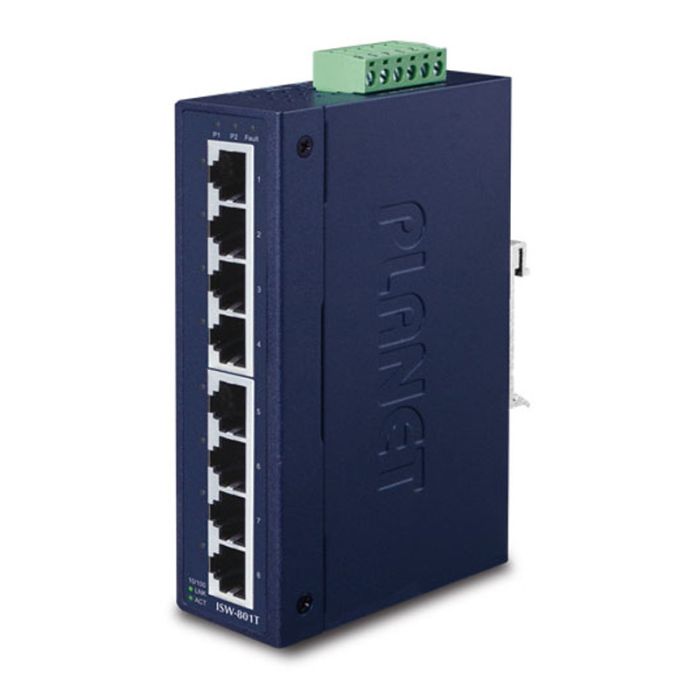

The ISW-801T’s IP30-rated metal case is particularly designed for the most heavy industrial demanding environments, such as factories, harbors, warehouses and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.

Physical Port

• 8-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function

Layer 2 Features

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
• Supports auto-negotiation and 10/100Mbps half/full duplex mode
• High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Backplane (switching fabric): 1.6Gbps
• Integrated address look-up engine, supporting 1 K absolute MAC addresses
• Automatic address learning and address aging

Industrial Case & Installation

• IP30-rated metal case
• DIN rail and wall-mount design
• 12 to 48 V DC, redundant power with polarity reverse protection function and connective removable terminal block for master and slave power, 24 V AC power support
• Lower Power Consumption device in full load operation mode
• Supports EFT protection for 6000 VDC for power line
• Supports 6000 V DC Ethernet ESD protection
• -40 to +75 degrees C operating temperature
• Free fall, shock-proof and vibration-proof for industries
