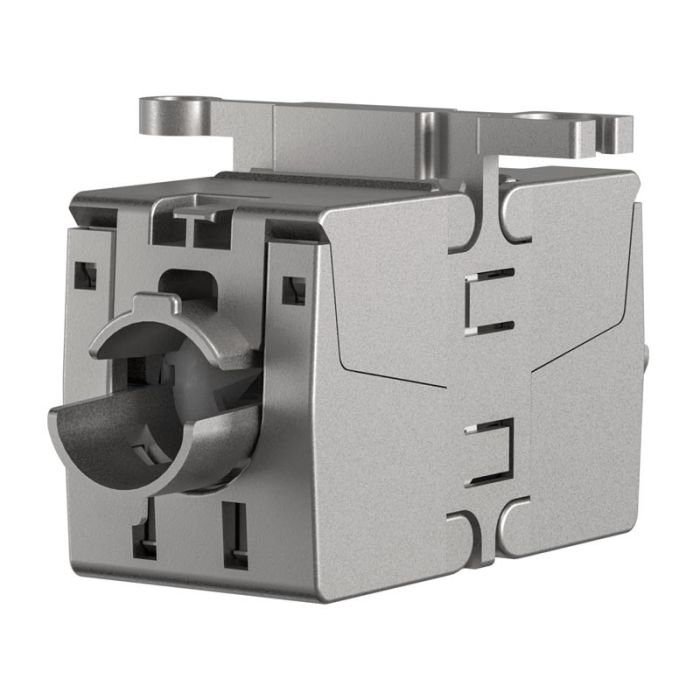

Модул за съединяване на два мрежови кабела кат. 6A / Class EA 10Gbit/s

The Class EA connection module provides high performance for 10 Gbit/s at small required space, combined with easy assembling without the need of special tools. Universal possibilities of mounting through screwing, linking. Optional 19“ panel of up to 24 x modules provides multiple field of applications:

• Connection of installation cable, e.g. in canals or ducts.
• Connection of installation cable with patch cable for end-to-end links or consolidation point applications.

Свойства:

• Fully shielded zinc diecast bodyhousing
• Dimension (W x H x L) 18 x 26 x 39 mm
• Link performance 10 Gbit/s Class EA acc. to ISO 11801
• 2 x compact cable manager for AWG26/1..AWG22/1 and AWG26/7..AWG24/7
• Pair management with color code, printed on cable manager
• Reliable differentiation of cable managers by mechanical and color assignment (plastic black / white) on the cable coupler and on cable managers
• PoE and PoE Plus according to IEEE802.3af/at
• 360° shield contact and strain relief independent from each other
• Gliding stored shield contact
• Screw- and line-up through loops at the side of the module
• 19” panel for holding of 24 x modules available as accessory

В комплекта влизат:

• 1 x connection module, 2 x cable pre-sorter (black + white), 2 x copper foil, 2 x cable ties
